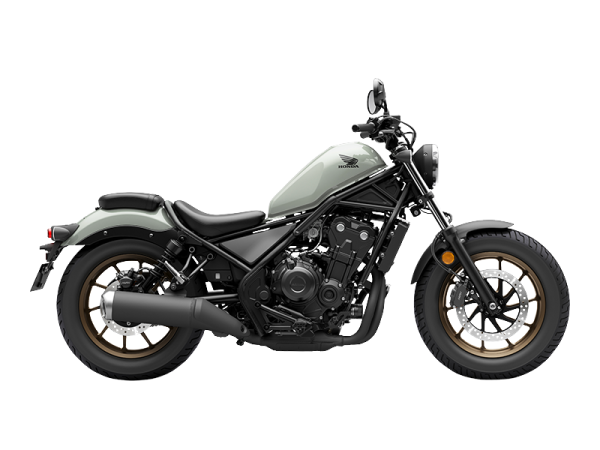

URBAN CRUISER WITH LOW RIDING STYLE

PRODUCT FEATURE

COLOR VARIANT

Rp. 202.545.000

PEARL SMOKY GRAY

SPECIFICATION DETAIL

DIMENSION
ENGINE
FRAME
ELECTRICAL

Dimension	2.205 x 820 x 1.090 mm
Wheel Base	1.490 mm
Ground Clearance	125 mm
Seat Height	690 mm
Curb Mass	191 kg
Fuel Tank Capacity	11 L

Engine Type	4-Stroke, DOHC Parallel Twin Cylinder
Displacement	471,03 cc
Cooling System	Liquid Cooled
Fuel Supply System	PGM-FI (Programmed Fuel Injection System)
Bore × Stroke	67 x 66.8 mm
Compression Ratio	10.7 : 1
Max. Power	33,5 kW/8.500 rpm
Max. Torque	43,6 Nm/5.500 rpm
Transmission	6 Speed
Gear Shift Pattern	1-N-2-3-4-5-6
Starting System	Electric
Clutch System	Wet Multiplate
Lubrication Type	Wet (Pressing and Spray)
Oil Capacity	2,5 L (Periodic Exchange)

Frame Type	Diamond, Steel
Front Tires	130/90-16M/C (67H)
Rear Tires	150/80-16M/C (71H)
Front Brake	Hydraulic, Single 296 mm Disc
Rear Brake	Hydraulic, Single 240 mm Disc
Brake System	ABS 2 Channel
Front Suspension	Showa, 41 mm Telescopic Fork
Rear Suspension	Showa, Adjustable Twin Rear Suspension

Ignition Type	Full Transisterized [MF 12V-7Ah]
Spark Plug Type	NGK CPR8EA-9
Headlight	High 23,2W-Low 11,2W

BIKE GALLERY

*Model shown are European type. For Indonesia only available in 500cc
