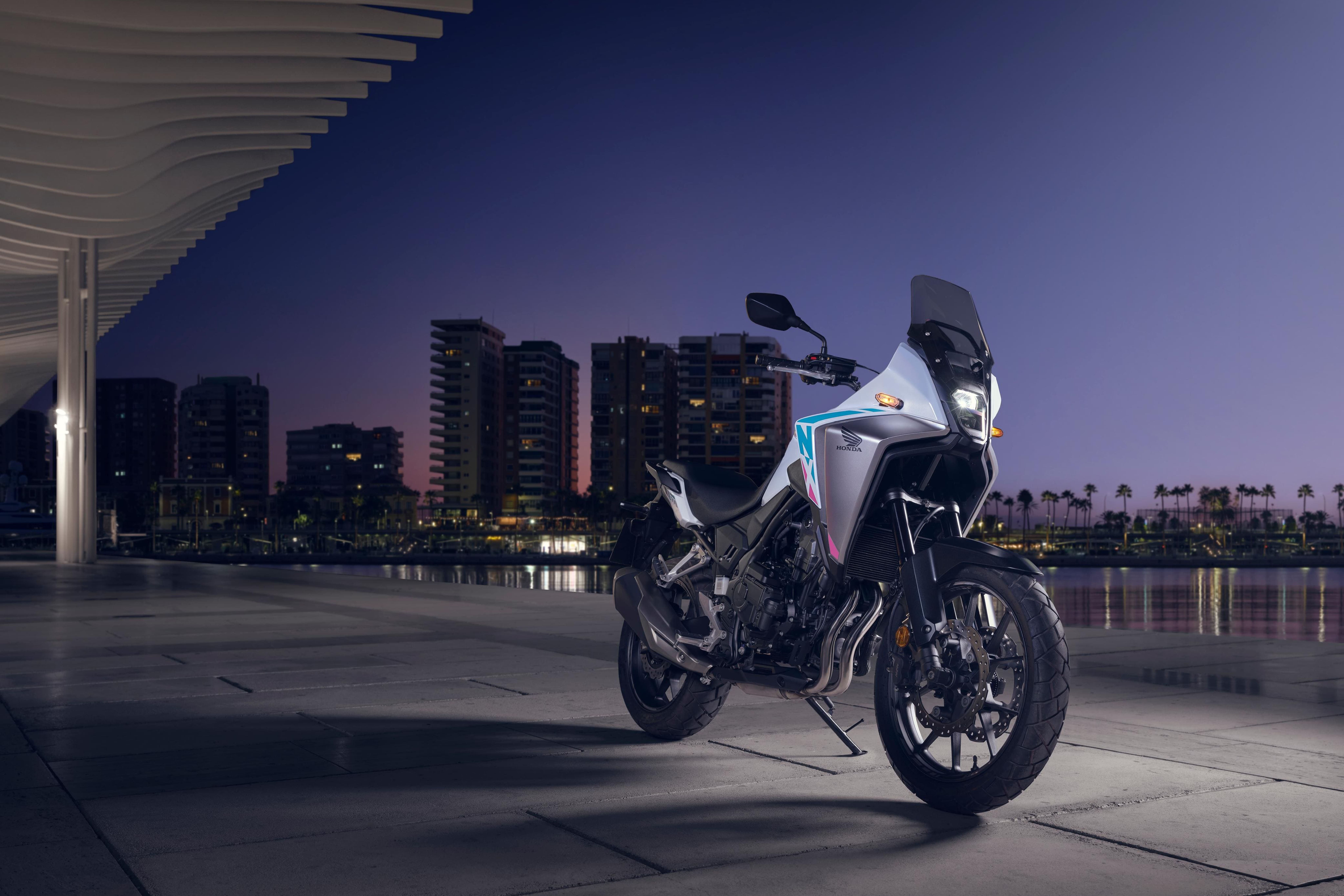

Honda NX500


NX 500 - 2

Honda E-Clutch

Honda E-Clutch fully automates operations that would usually require the use of a clutch lever, including starting up, shifting gears, and stopping. Precise electronic control enables the optimal clutch movements, allowing the rider to focus on riding, turning, and stopping.

Honda RoadSync

Honda RoadSync is the companion app for selected Honda vehicles. It offers simple & easy access to calling, messaging, navigation, and music while riding your Honda motorcycle.

NX 500 - 1


PRODUCT FEATURE

Honda Bigbike
Honda Bigbike

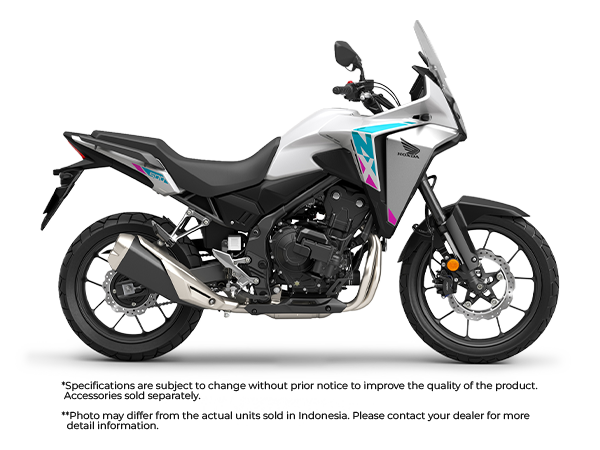

COLOR VARIANT

Rp. 230,000,000

PEARL HORIZON WHITE

SPECIFICATION DETAIL

Dimension

2.163 x 830 x 1.417 mm

Wheel Base

1.443 mm

Ground Clearance

181 mm

Seat Height

834 mm

Curb Mass

200 kg

Fuel Tank Capacity

17,7 L



Engine Type

4 Stroke, DOHC, Parallel Twin Cynlinder

Cooling System

Liquid Cooled

Fuel Supply System

PGM-FI (Programmed Fuel Injection System)

Displacement

471 cc

Bore × Stroke

67 x 66,8 mm

Compression Ratio

10.7 : 1

Max. Power

37,1 KW/8.500 rpm

Max. Torque

44,7 Nm/6.500 rpm

Transmission

Constant Mesh, 6 Speed

Gear Shift Pattern

1-N-2-3-4-5-6

Starting System

Electric

Clutch System

2 Multiplate Wet Clutches with Coil Spring

Lubrication Type

Dry (Pressing and Spray)

Oil Capacity

2,4 L periodic exchange

Frame Type

Diamond Type, Steel

Front Tires

110/80R19M/C 59H

Rear Tires

160/60R17M/C 69H

Brake System

ABS 2 Channel

Front Brake

Hydraulic, 296 mm Double Disc with Dual Piston Calipers

Rear Brake

Hydraulic, 240 mm Single Disc with Single Piston Calipers

Front Suspension

Showa, 41 mm SFF-BP Inverted Telescopic Fork

Rear Suspension

Swing Arm, Adjustable Showa Monoshock with Prolink

Ignition Type

Full Transisterized

Batttery

MF-WET 12V - 7Ah

Spark Plug Type

NGK CPR8EA-9

Security

HISS (Honda Ignition Security System)
